Venting safety hat SM-904 / SM-914

V guard style helmet

Venting safety hat SM-904 / SM-914

  • Venting hole design
  • SM-904 with ventilation
  • SM-914 without ventilation
  • V shape on the top design
  • Universal 30mm slot

Certification

  • ANSI Z89.1
  • CE EN397 (SM-904)
Description

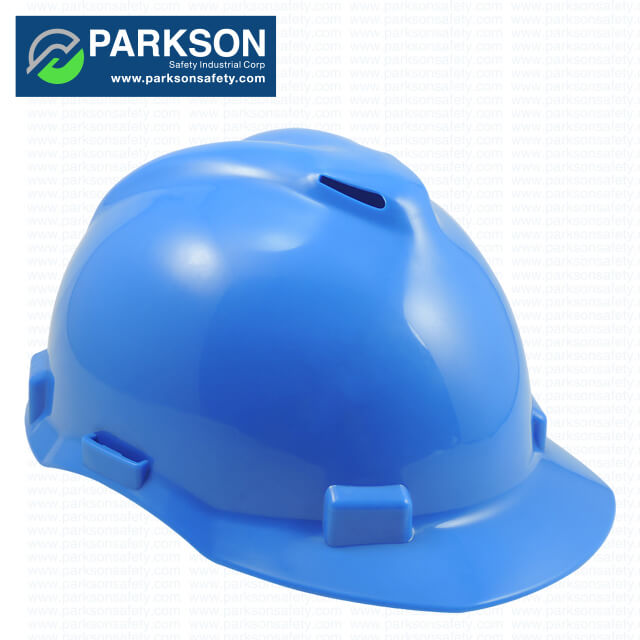

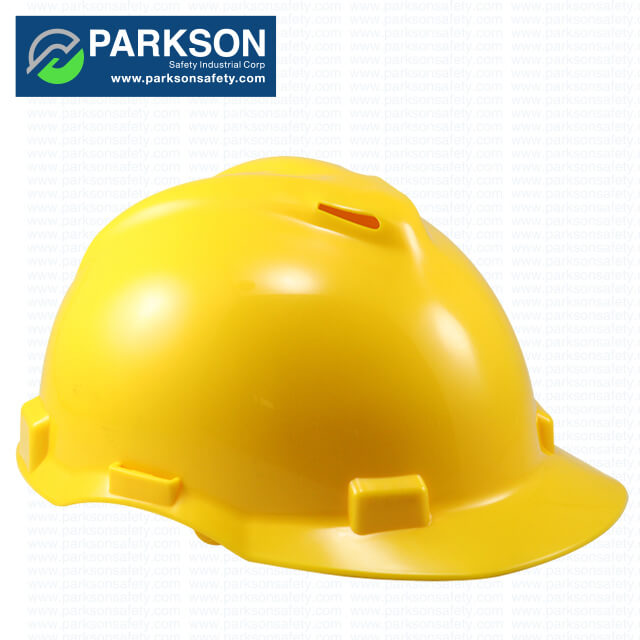

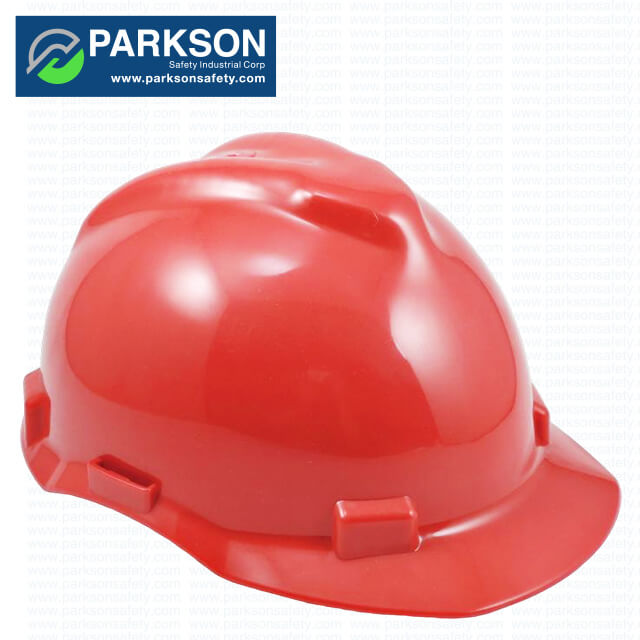

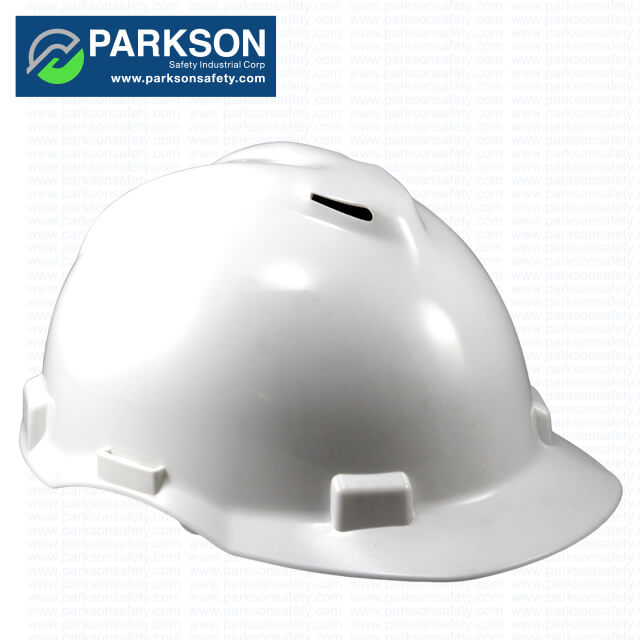

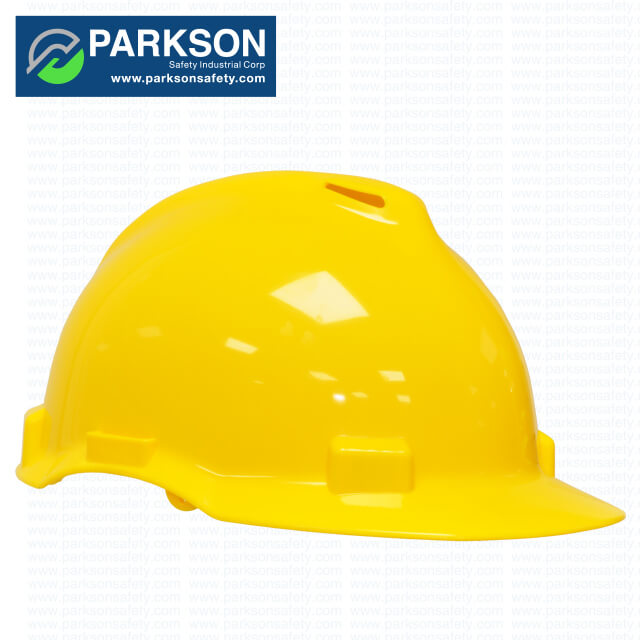

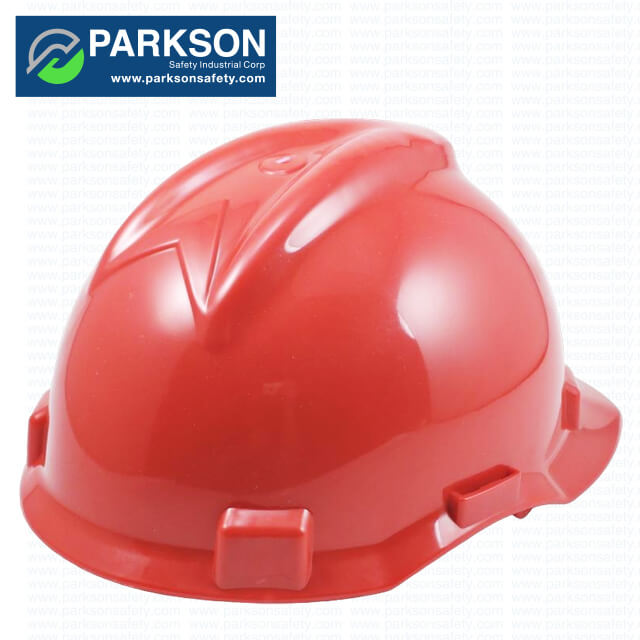

Parkson Safety Venting safety hat SM-904 / SM-914:

Introducing the Parkson Safety Venting Safety Hat SM-904 and SM-914, designed to provide optimal head protection in various work environments. These classic safety helmets feature a unique V-shape on the top, offering enhanced impact resistance. With options for four or six-point suspensions and universal 30mm slots, you can easily attach a face shield or earmuff for added protection.



The SM-904 model includes ventilation holes for increased airflow, making it perfect for extended wear in hot conditions and is CE EN397 certified. On the other hand, the SM-914 model is identical to the SM-904 but without ventilation holes. Both helmets are made from sturdy PP material and are available in standard colors: white, yellow, blue, and red. Custom colors and logo printing options are also available upon request.



Meeting both ANSI Z89.1 and CE EN397 standards, these helmets ensure top-notch safety. The SM-904 is certified for ANSI Z89.1 Type 1 Class C, while the SM-914 complies with ANSI Z89.1 Type 1 Class E, C, and G for electrical insulation.



Key features of these venting safety hats include their lightweight design, comfortable fit for extended periods, and high-performance impact resistance. Enhance your safety gear with compatible accessories like visor brackets, suspensions, earmuffs, chin straps, and visors. Choose between the Parkson Safety Venting Safety Hat SM-904 or SM-914 to stay protected and comfortable on the job.



Various suspension option available

  • 4 or 6 points suspension
  • PE Plastic or Nylon Webbing
  • Pinlock, Press Ratchet and Nob Ratchet options
  • Custom submold logo, printed logo available upon request

Declaration of Conformity SM-904







Brief Detail

Model SM-904/SM-914
Weight (include CS-2 suspension)
Head Sizing (A)
Length (B)
Height (C)
Origin Taiwan
Certification            CE EN12492 standard

Safety Helmet vs Bump Cap usage:

Most people mistaken between the use of industrial safety helmet with bump cap.     Due to bump cap light weight and more fashionable design, most people prefer the use of bump cap over safety helmet.   But bump cap can not replaced as safety helmet.   Bump cap is tested against European standard CE EN812 although there are still impact and penetration testing, but bump cap are intended to protect end user head from hitting stationary hard objects such as truck driver use when entering building with low ceiling or hanging objects.

Construction:

For safety helmet it is intended to protect end user head against falling objects.  International standard such as CE EN397 and America standard ANSI Z89.1 will cover physical and performance requirement for industrial safety helmet use in occupational health and safety.

Safety helmet usually consist of a front sweat band to increase comfort, chinstrap to secure helmet to head and adjustable harness where end user can adjust sizing to head.     Parkson Safety offer 2 type of bump cap, Refer to SM-903, it is similar style to safety helmet where there is an internal adjustable harness and sweat band, but no chin strap available.    Another style is our sports style bump cap such as Ref:SM-913 where it consists of fabric outer over an inner ABS shell with EVA foam for shock absorption and with back velcro adjustable.

Models Availability:

Parkson Safety offer traditional style safety helmets with a front peak to keep out of sun and rain.    We also offer models with ventilation system to increase airflow such as SM-924.  Full brim helmet Ref:SM-905 are to provide better protection against rain and sun but have disadvantage with its big sizing in transportation and storage.   Climbing style helmet offers better visibility are also becoming increasing more popular in current market trend.

CE EN397 Industrial Helmet vs CE EN12492 climbing helmet:

Parkson new launch model SM-919 are climbing style helmet certified under CE EN397 and ANSI Z89.1.   Our latest development SM-909 are certified under CE EN12492 as Climbing and mountaineering helmet.  The main differences between CE EN12492 and CE EN397 where CE EN12492 required a chinstrap strength greater than 50kg, where the helmet needs to secure on the head in the case of a fall.   Whereas CE EN397 required a chinstrap strength no more than 25kg, to reduce the risk of strangulation upon impact on the helmet.    It is essential to determine the intention of use and the risk involved to select the most suitable products for personal safety protection.  We recommend to access SATRA explanation on EN12492 testing via EN 12492: 2012 – Helmets for mountaineers (satra.com)

Benefit overview

#

PARKSON Anti Fog AF Coating Technology

FAQ:

1.Why would I want to work with your company?

Parkson Safety provide professional ODM service to worldwide customers by supplying products under private branding.   We have vast experiences and knowledge in customized branding.

As our products are for personal safety purpose, most countries have local safety regulation.   We worked with INSPEC, SGS, DIN CERTO, CRITT, BSI GROUP as example for certification of products.  We have tech staff to perform secondary CE cert application as support.   If client have special testing requirement, we work with local test lab such as SGS Taiwan for product testing.

Additionally upon confirm order, we have artwork staff help to custom design packaging artwork free of charge.   We can also help to provide high quality image for advertising and also DM/Flyer for local distribution.

Our sales teams have vast experiences, if you have any inquiries, welcome to further discuss your requirement with us.

2. What kind of branding options are available?

  • Frame color can be change upon request with MOQ
  • Custom Logo such as embossed, printing, pressed logo and laser engrave are available depending on products range.
  • Own Brand Packaging such as headercard, paper box, window box, dispenser box, color corrugated color, color polybag and ziplock bag…etc
  • We carter for custom packaging material, such as warning sticker label, barcode label and instruction leaflet..etc.

3. How do I know what the product looks like with logo?

Our artwork staff can help to arrange digital proofs with logo on products for approval before production.

4. How are your goods package?

Depending on product type, for example safety spectacles/protective goggles/earmuff, these are package in polybag and then inner box and then in corrugated master carton.

Custom Pallet packing with plastic wrapping can be carter with additional charge.

5. Do you offer samples and are their cost required?

For standard product products we are happy to offer few items free of charge, but freight cost needs to be cover.  However, if it is a high cost product or required a lot of samples or if it is customized product, there will be sample charge apply.   For shipment, we recommended client arranging reserve collection via local express service to pick up samples from us.  Or we can quote with our partner express service for cost to the nominated postal address.

PARKSON Mirror M Coating

6. What is sample lead-time?

For  standard product and are available on hand, sample lead time around 3-5 days.  If samples are not available on hand or if it is customized sample, please kindly allow longer wait time.

7. What certification do you have?

We have ISO 9001 and are certified by Dun & Bradstreet Number:657536132

As we are selling safety protection equipment, we also have CE certification for EU market and third party test report for ANSI (US market).

8. Do not have FDA?

No, we do not have FDA

9. What is your MoQ?

In general our MoQ is USD10,000 per shipment mix item acceptable.

It is very welcome to advise the required qty and we will try to carter for the qty of interest.  We understand a smaller trial order is required to develop trust and to test the market.

10. What kind of shipping method do you offer?

Most of our clients arrange sea shipment port to port.  For urgent orders we can arrange express courier service such as FEDEX/DHL/TNT.  We can also carter for air freight airport to airport and also sea shipment with to door delivery service.

11. Do you keep stock?

Most items we do not keep stock.  We produce goods base on confirm order, as most of our client arrange products with their own logo.   We might have a small qty of standard product as sample.

12. Do you ship to different countries?

Yes, we have customers all over the world.  In some countries we might have exclusive or local distributor.   Please feel to let us know of your requirement and we can direct them to you.

13. Can we arrange inspection after goods completion?

Understanding we are working internationally, third party inspection is welcome. We have worked with SGS/V TRUST/TESTCOO/Intertek/UL/BV.   Alternatively, we can also help to provide photos of goods upon completion and offer shipping samples for checking before shipment.   In some countries, it is required third party organization to issue certificate of conformity before importation, our staff have vast experiences and can offer professional assistance.

14. What is production lead time?

Production time depends on product type and qty, in general please allow 60days.
